Condition: New
Place of Origin: Beijing, China (Mainland)
Brand Name: CEI
Model Number: HPE5-30
Usage: Hydrogen
Production Rate: 100%
Voltage: Actual Voltage
Power(W): 4KW
Weight: 1.0t
Dimension(L*W*H): 1.4*1.0*2.5m
Certification: ISO9001,ISO14001,OHSAA18001,More than 20 Technology patents etc.
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Keyword: hydrogen purification
Application: Industry pr energy
Purity: 99.9999%
Capacity: 5-30Nm3/h
regeneration temperature: 250℃
Deoxidization temperature: 80-100℃
Pressure: 1.6-3.2Mpa
cooling water Consumption: 1.5 t/h
Dew point: -70℃
Service life: more than 30 years

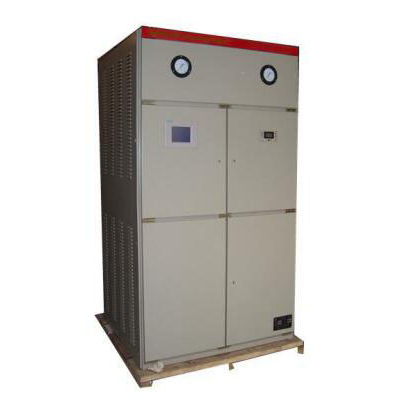

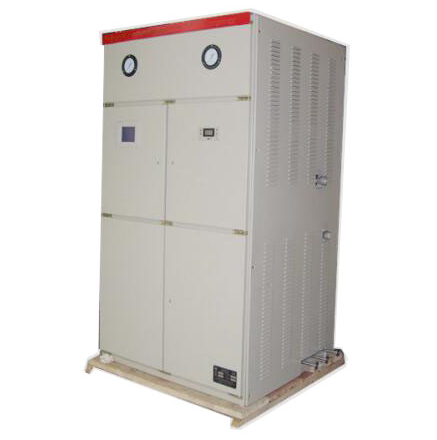

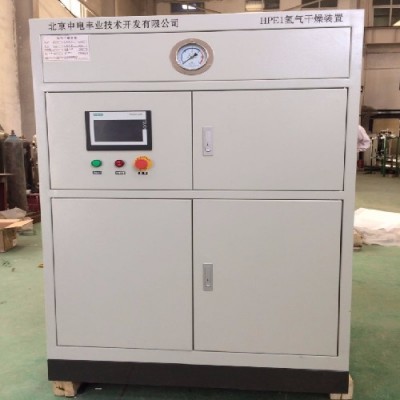

HPE series Hydrogen Purification Device
Our HPE series medium-pressure hydrogen purification device is an auxiliary device for water electrolysis hydrogen generator. The purity of hydrogen after purification could be up to 99.9999%.
Advantages
1.Ultrapure hydrogen
The hydrogen purity after this equipment could be up to 99.9999%.
Dew point could be up to -70
2.Customerized design
We can provide customerized hydrogen purification device according to customer’s requirements.
3.Proven reliability
Durable stainless steel components maximize the service life of the device.
The proven service life of the device is more than 30 years.
4.Zero loss of regeneration gas
The regeneration gas can be re-input into exhaust gas recovery device which is designed by our company especially for exhaust gas, or into three-tower recovery system. There is be no loss of hydrogen.
5.Easy installation
Hydrogen purification device is modular integrated design which makes on-site installation
very easy and convenient.
6.Hydrogen purifying Capacity
Working Pressure up to 3.2MPa
Single unit hydrogen purifying capacity could be from 2 to1200m3/h
7. Strict quality management
Product design, material selection, and manufacture are all strictly controlled to make sure that each unit is with the best quality.
Model | HPE5-30 | HPE40-70 | HPE80-150 | HPE160-250 | HP300-500 | HPE1200 | |
Purifying capacity m3/h | 5-30 | 40-70 | 80-150 | 160-250 | 300-500 | 1200 | |
Work pressure Mpa | 1.6-3.2 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | |
Work temperature | DEOX ℃ | 80-100 | |||||
drying ℃ | Normal temperature | ||||||
regeneration | 250 | ||||||
Cooling water Consumption (t/h) | 1.5 | 2.5 | 3.0 | 4.0 | 6.0 | 12.0 | |
Eelectricity Consumption (KW) | 4 | 10 | 14 | 18 | 22 | 28 | |
Instrument gas consumption (m3/h) | 2 | 2 | 3 | 3 | 3 | 5 | |
Product gas | dew point | ≤-60℃ | |||||
oxygen ppm | ≤5.0 | ||||||
Operation method | PLC full-automatic | PLC full-automatic | PLC full-automatic | PLC full-automatic | PLC full-automatic | PLC full-automatic | |
Dimensions L*W*H(m) | 1.4*1.0*2.5 | 2*1.4*2.5 | 2.4*1.8*2.8 | 2.8*1.8*2.8 | 3.2*2*3 | 4*2.3*3.2 | |
Weight(t) | 1.0 | 2.0 | 3.0 | 3.5 | 4.5 | 6.0 | |
Remark | Regeneration methods of Hydrogen purification device include: raw gas regeneration, product gas (nitrogen) regeneration (venting), three-tower regeneration without venting for the user to choose | ||||||
Why choose us?
1. We specilize in
• Water Electrolysis Hydrogen/Oxygen generator design, production, sale, operation, repair, maintenance, upgrading, replacement, related equipments, spare parts supply, Hydrogen stroage etc.,
• Hydrogen Station Application Solution Provider,
• Hydrogen Energy Strategy Consulting
2. We are the National High-tech enterprise of hydrogen energy and owns more than 20 technology patents, ranked in the top three among domestic peers;
3. We owns the most complete and diverse product line and service based on water electrolysis hydrogen production and related equipments;
4. The elite technology R&D, production, sale, after-sales service and management team, also experienced engineering team with on-site service. We can also supply over sea service.
5. More than 10 years with rich project experience in the different Industry and energy fields and related authoritative qualifications.
6.Strategic Exclusive Partners in China:
• China's top Hydrogen Energy Research Institute: Dalian Institute of Chemical Physics, Chinese Academy of Sciences
• Europe and the United States hydrogen energy leading brands: the famous American military and energy group-Teledyne and the world's top 500 nuclear power giant-Areva group H2GEN hydrogen energy company
• EU's famous hydrogen energy consulting and think tank company-Hinicio
• Three hydrogen station auxiliary product partners: German PRO-CHEM inspection instrument, US Fluitron hydrogen compressor and US STRONG intelligent leak detector,
• The famous American water treatment company-Transfilm

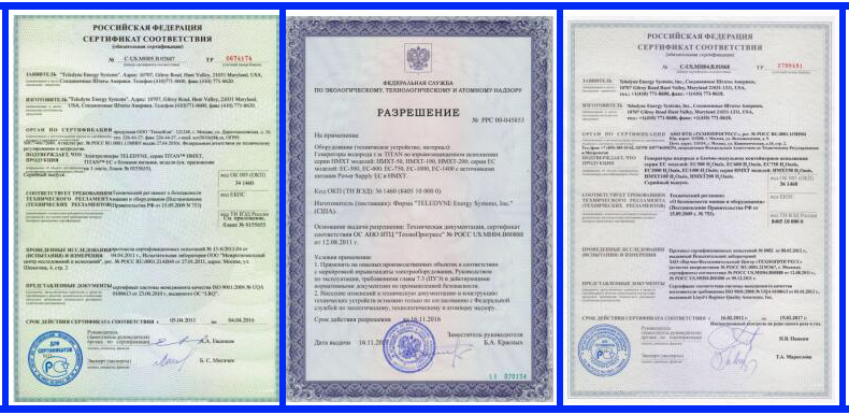

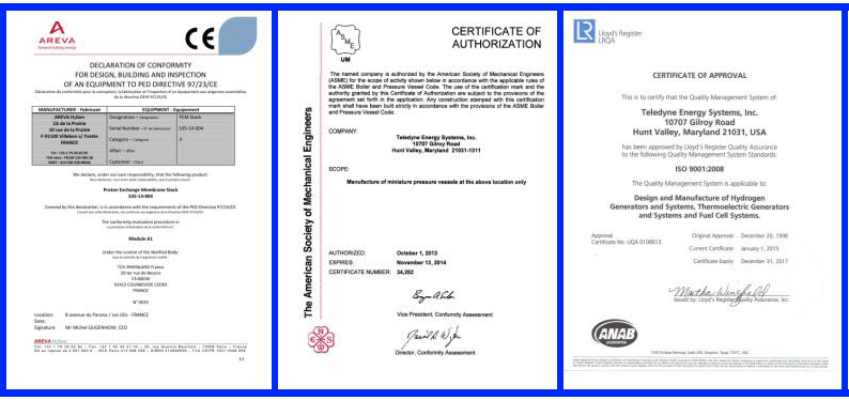

Our Qualification & Certification

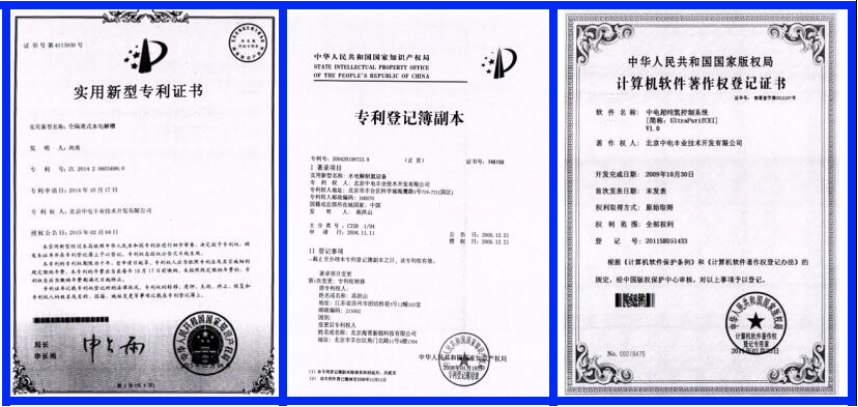

More than 20 Technology patents:
CE, SIL 2, EU, ASME, GOST, RTN, ISO9001,ISO14001,OHSAS18001 etc.

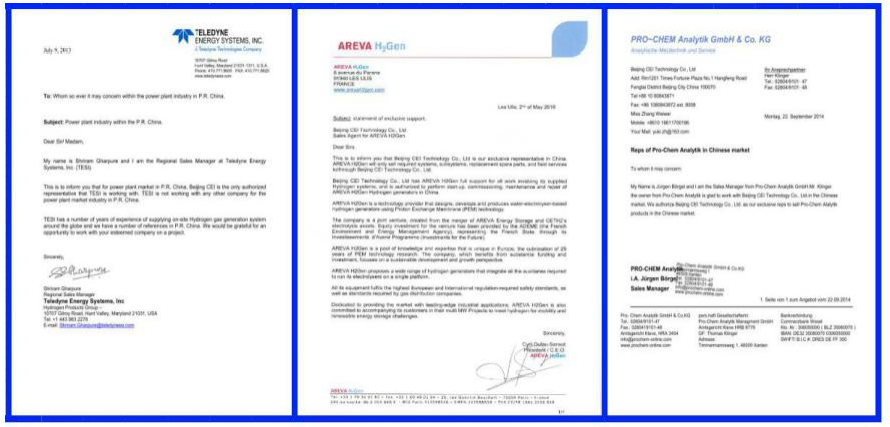

Strategic cooperation agreements with Teledyne,Areva, Pro-chem, Hinicio, Fluitron, Strong, Transfilm etc.
Application-Traditional industrial field:

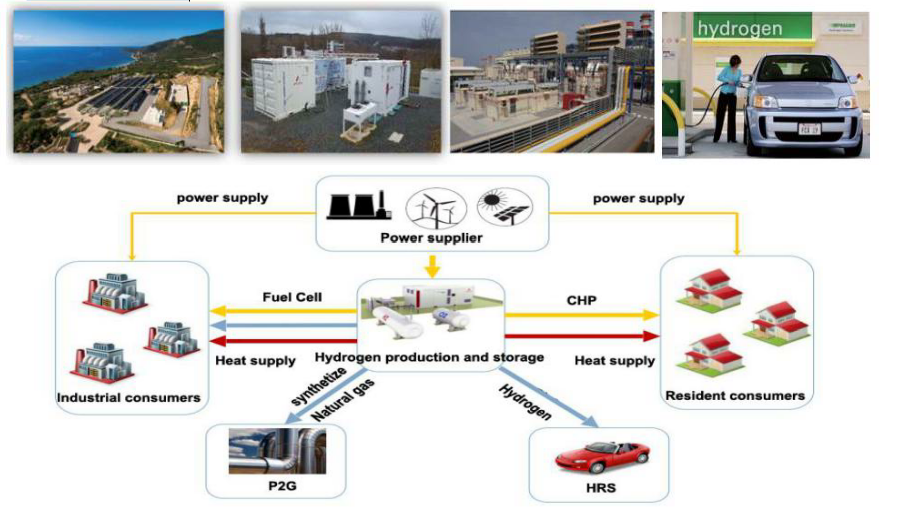

Application-Energy fields:
